Waste Water Treatment Works

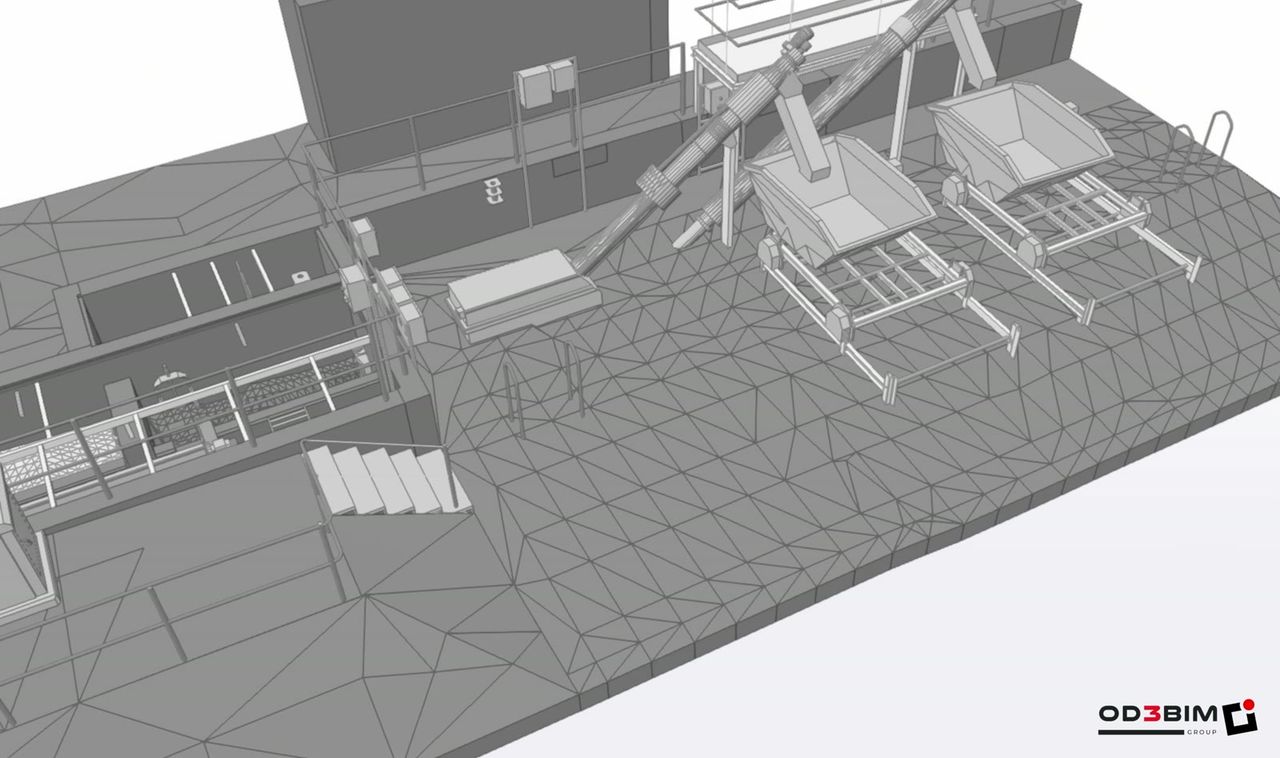

A waste water treatment works captured by 3D laser scanning and modelled to BIM — dense process plant recorded accurately for upgrade and design.
Walkthrough
A waste water treatment works is exactly the kind of site that defeats a tape measure: tanks, pipework, pumps and process steel packed into a live, operational plant. OD3 captured it with 3D laser scanning and turned the point cloud into an as-built BIM model.
Reality, accurately recorded
The Trimble X7 records the whole plant as a ±2mm point cloud in a fraction of the time a manual survey would take. Registered in Trimble RealWorks, it gives engineers a complete, measurable model of the existing works — the reliable base every upgrade, tie-in and new structure needs.
Capture once, use everywhere
The same model supports clash-free design of new plant, accurate quantities, and setting-out and as-built verification on site — OD3's digital thread applied to critical water infrastructure.
Outcome
A complete, measurable as-built model of a live treatment works — ready to design upgrades against with confidence.
